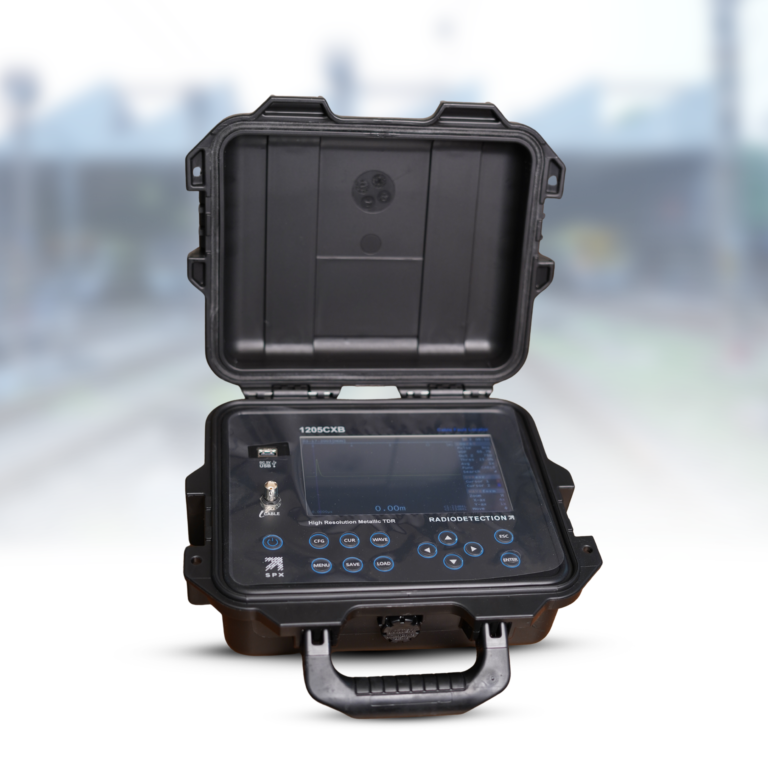

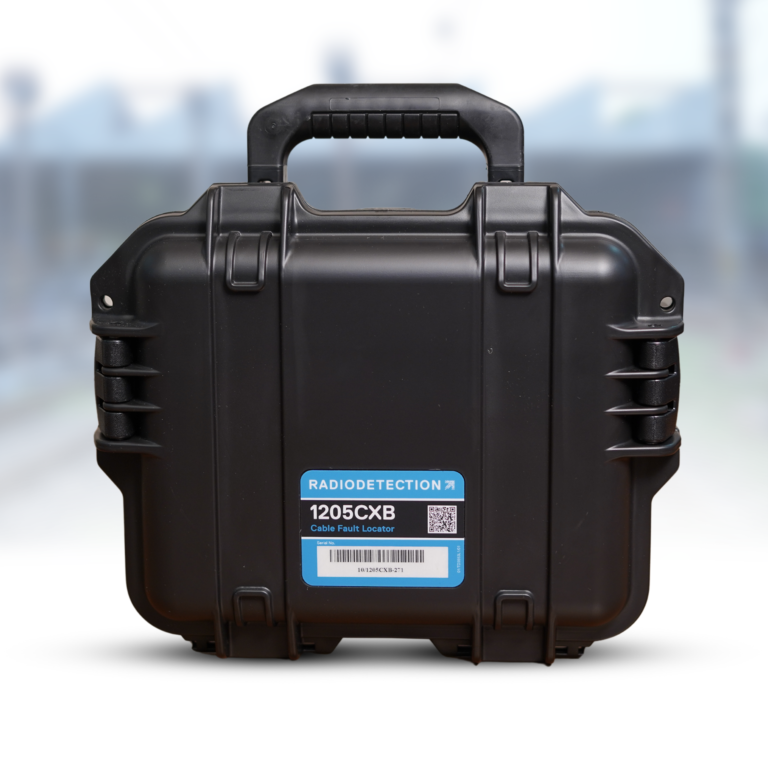

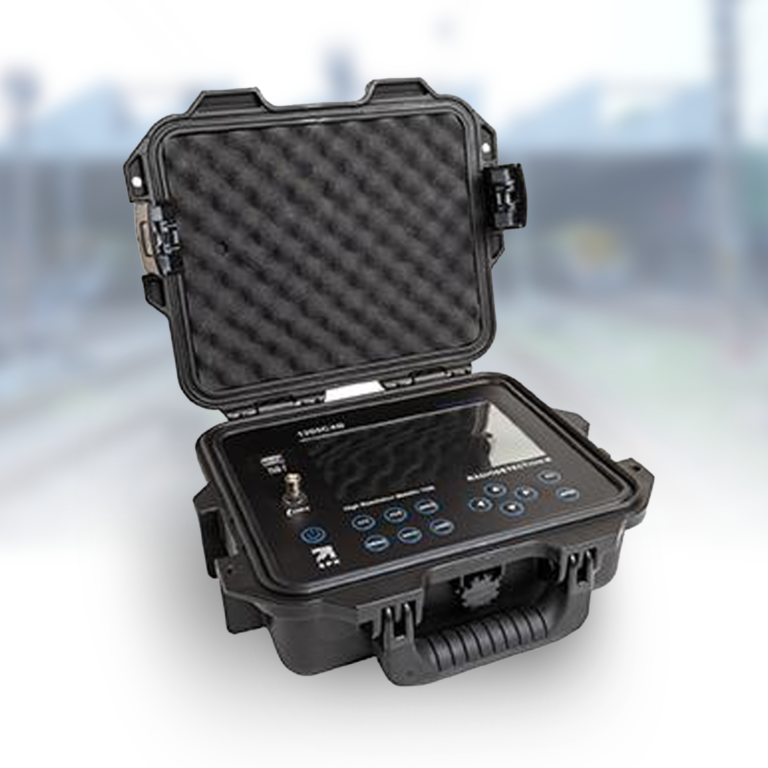

The 1205CXB is a sophisticated Time Domain Reflectometer (TDR) designed for precise metallic cable fault detection and analysis. The system features ultra-clean, low noise signal processing paired with a large color display for clear fault visualization. Its automated scanning capability allows preset threshold detection, while dual independent cursors with automatic distance calculation enable precise fault location measurement.
Built for operational efficiency, the system includes automatic dBRL (Return Loss) calculation functionality and comprehensive waveform storage options through both onboard memory and USB connectivity. The interface puts all TDR functions at the top level for immediate access, eliminating complex menu navigation. Integration with WaveView™ PC software enables detailed waveform analysis, comprehensive reporting, and post-measurement VOP correction capabilities.
Applications
– Cable fault detection and location
– Network connectivity troubleshooting
– Cable impedance analysis
– Return loss measurement
– Infrastructure maintenance
– Network quality assessment
– Field diagnostics and reporting
– Cable system documentation
