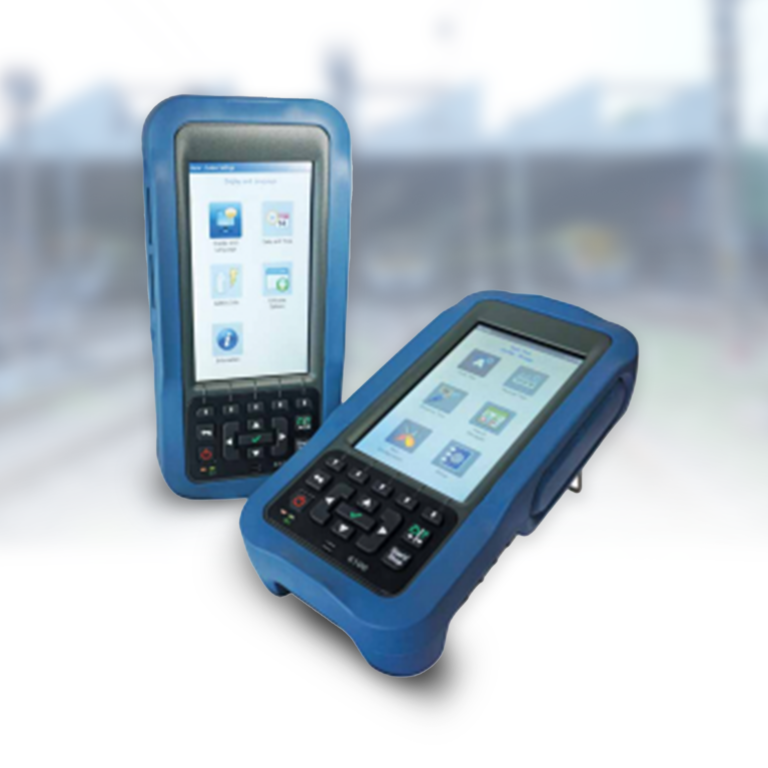

The 6100 Series represents Radiodetection’s comprehensive network analysis solution, featuring advanced copper measurements and DSL testing capabilities. The system provides extensive copper infrastructure evaluation, including voltage, resistance, capacitance, and time domain reflectometry measurements. With wideband attenuation testing up to 35 MHz and automated fault location tools, the system delivers thorough network analysis capabilities through a highly automated interface.
The series, particularly the 6100-Gfast variants, incorporates the latest-generation Broadcom chipset supporting multiple DSL standards including ADSL2+, VDSL2, and G.fast. The system features comprehensive testing protocols with resistance isolation testing (50V to 500V), crosstalk noise measurement (NEXT), and bridge testing capabilities. Advanced features include VDSL2 vectoring support (ITU-T G.993.5), G.INP implementation, and integrated Speedtest™ by Ookla® functionality for complete network performance assessment.
Applications
– DSL service deployment and qualification
– Network infrastructure troubleshooting
– Copper pair quality assessment
– Noise and signal analysis
– Fault location and diagnostics
– Service turn-up verification
– Performance testing and certification
– Cross-talk analysis and mitigation
