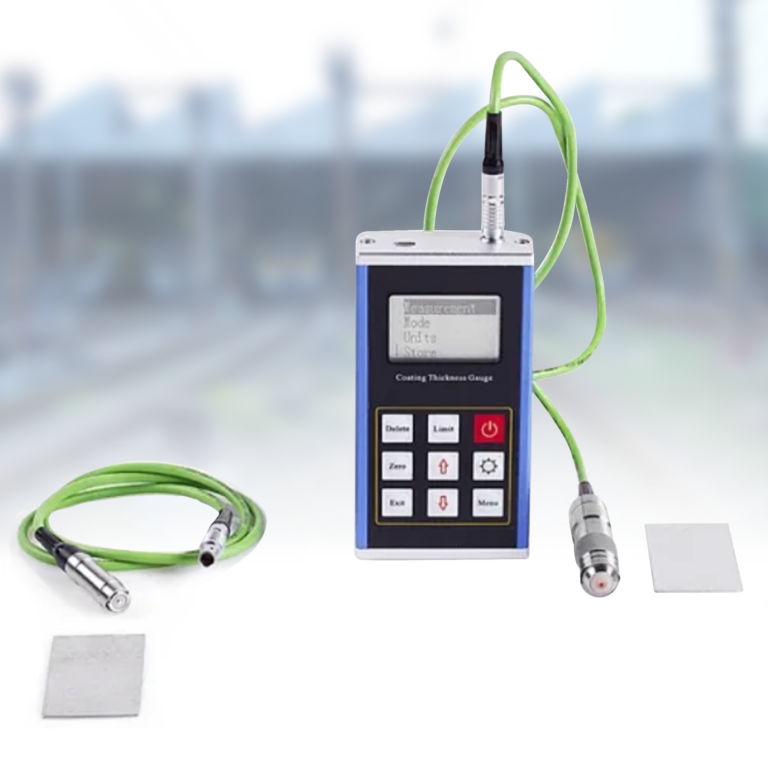

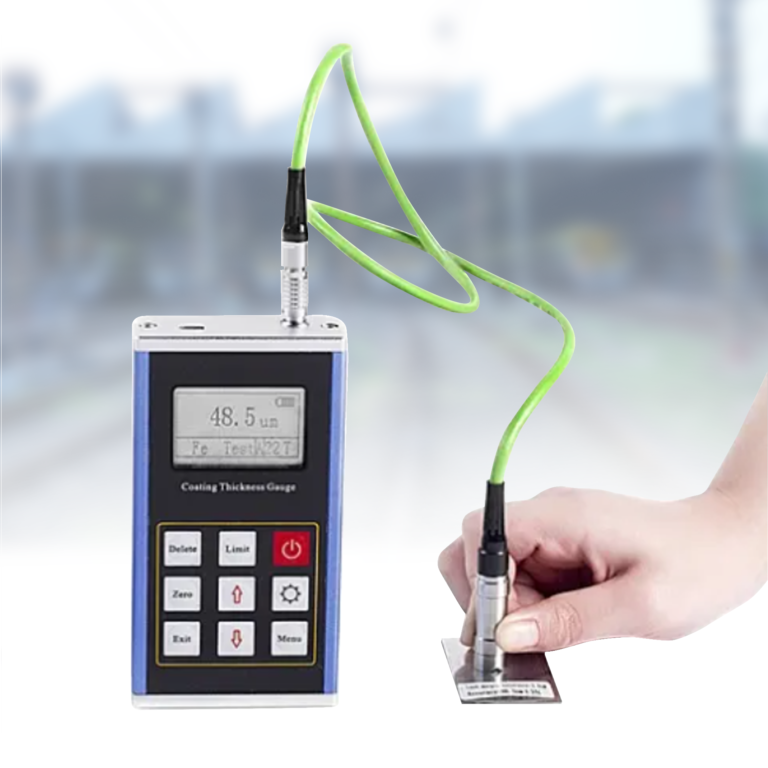

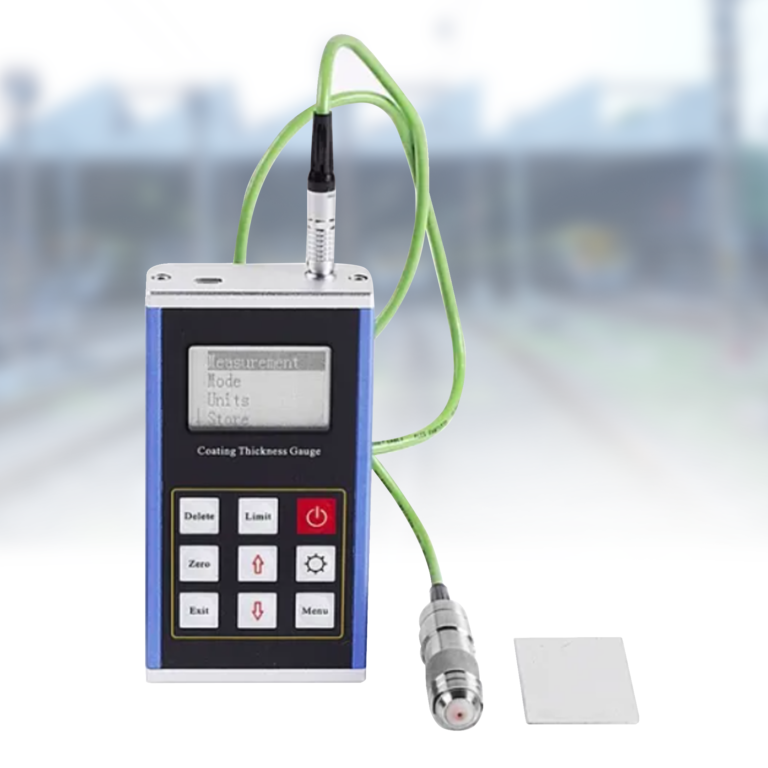

The Leeb 230 series represents advanced coating measurement technology, with model 232 offering dual measurement principles (magnetic induction and eddy current) in a single device. The series provides precise measurements up to 1250μm with an accuracy of ±[(1-3%)H+1] and resolution down to 0.1μm. Through its English menu interface, these gauges offer both direct and group measurement patterns, with comprehensive limit setting capabilities and real-time battery monitoring for efficient operation.
Engineered with a durable metal case construction, these devices feature professional-grade capabilities including 500-measurement storage capacity and advanced statistical analysis functions. The series operates effectively in temperatures from 0°C to 40°C with 20-90% humidity tolerance, maintaining accuracy on curved surfaces with minimum radii of 1.5mm convex and 9mm concave. Each unit includes a complete calibration kit with five specimens (50μm-1000μm) and supports dual calibration methods for optimal accuracy. The compact design (150×55.5×23mm) powered by AAA batteries ensures portability while maintaining professional performance standards.
Applications
– Industrial coating inspection
– Marine hull coating assessment
– Pipeline coating verification
– Pressure vessel examination
– Non-magnetic coating measurement
– Quality control processes
– Metal substrate inspection
– Automotive finish testing
