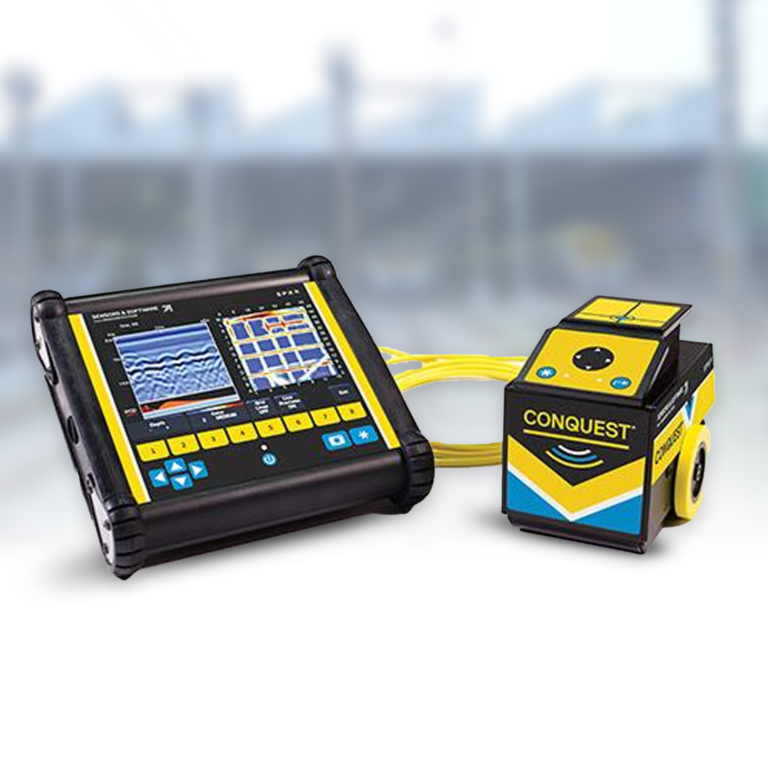

The CONQUEST 100 GPR is a specialized concrete scanning system featuring an innovative ultra-wideband GPR antenna capable of penetrating up to 910mm (36 inches) in depth. The system integrates unique Power Cable Detector (PCD) technology for identifying hazardous current-carrying cables and includes Dynamic Quality adjustment for optimal data collection. Its user-friendly touchscreen interface enables real-time object classification, measurement, and marking during scanning operations.
Engineered for versatility in concrete inspection, the system features a lightweight sensor head design for easy manipulation on walls, ceilings, and confined spaces. The precision two-wheel drive optical encoder provides ≤0.5mm resolution scanning capability on both flat and curved surfaces. With built-in Wi-Fi for instant report sharing, USB connectivity for data export, and long-lasting swappable Li-Ion batteries, the system ensures efficient field operations. Enhanced versions support integration with EKKO_Project GPR Software for advanced analysis.
Applications
– Rebar and post-tension cable detection
– Metallic and non-metallic conduit location
– Concrete structure mapping (floors, decks, columns)
– Pre-cutting and pre-coring inspection
– Void detection beneath concrete slabs
– Live electrical wire identification
– Wall and ceiling infrastructure mapping
– Structural concrete assessment
