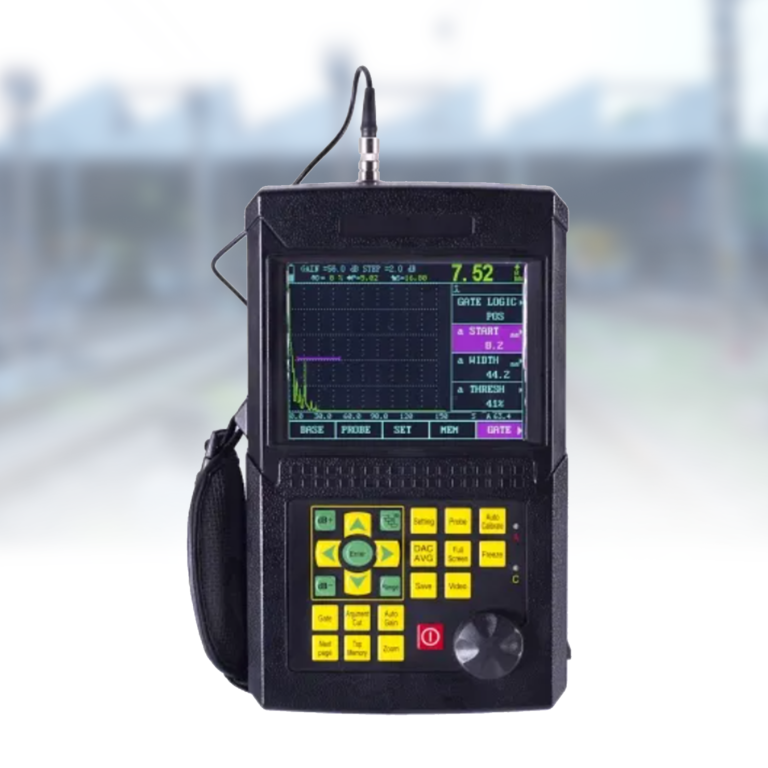

The Leeb 510-522 series represents advanced ultrasonic flaw detection technology, with operating frequencies ranging from 0.5MHz to 15MHz (510/520) and up to 20MHz (521/522). The series offers progressive capabilities across models, with scanning ranges from 0-6000mm (510/520) extending to 0-10000mm (521/522), and enhanced dynamic ranges from ≥32dB to ≥35dB. The systems feature automatic probe calibration, one-button operation, and comprehensive DAC/AVG functionality with unlimited sampling points.
Built for industrial applications, these units (240×160×40mm, 1.2kg) incorporate oil-proof, water-proof, and dust-proof construction. The series features a 26-million color ultra-bright display with adjustable brightness and offers model-specific enhancements: 50-100 measuring channels, storage capacity from 500-980 A-scans, and gain ranges from 0-110dB to 0-130dB. The Leeb522 adds advanced capabilities including B-Scan and video functionality. Each unit includes both straight (2.5MHz, 20mm) and angle (4MHz, 60-degree) probes, provides 10-hour continuous operation, and supports PC connectivity for comprehensive data management and Excel-format reporting.
Applications
– Boiler and pressure vessel inspection
– Aerospace component testing
– Power generation equipment verification
– Petroleum pipeline assessment
– Chemical plant infrastructure
– Marine vessel inspection
– Military equipment evaluation
– Automotive manufacturing QC
– Steel structure analysis
– Nuclear facility maintenance
