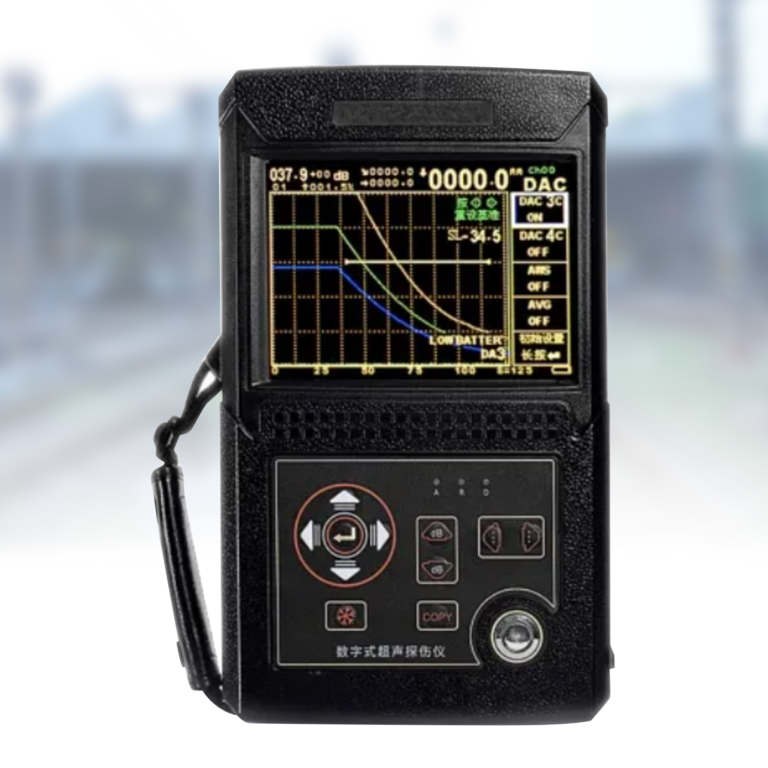

The Leeb500 is a professional-grade ultrasonic flaw detector operating across frequencies from 0.5MHz to 15MHz with a scanning range of 0-6000mm. The system features automatic probe calibration and advanced DAC/AVG functionality with correction and compensation capabilities. With a dynamic range of ≥32dB, gain range of 0-110dB, and testing sensitivity of ≥60dB at 200mm depth, the device delivers precise flaw detection and evaluation across multiple measurement standards (depth D, level P, distance S, amplitude H).
Built for industrial durability, the unit (240×160×40mm) weighs 1.2kg and features oil-proof, water-proof, and dust-proof construction. The system operates effectively in temperatures from -20°C to +70°C with 20-95% humidity tolerance, providing over 10 hours of continuous operation on its rechargeable Li-ion battery. Supporting both straight (2.5MHz, 20mm) and angle (4MHz, 60-degree) probes, the device includes comprehensive data management capabilities storing up to 980 A-scan images and data sets, with PC connectivity for analysis and reporting.
Applications
– Weld inspection
– Crack detection
– Blowhole identification
– Power plant equipment testing
– Petrochemical facility inspection
– Pressure vessel verification
– Aerospace component analysis
– Railway infrastructure assessment
– Automotive quality control
– Steel structure evaluation
