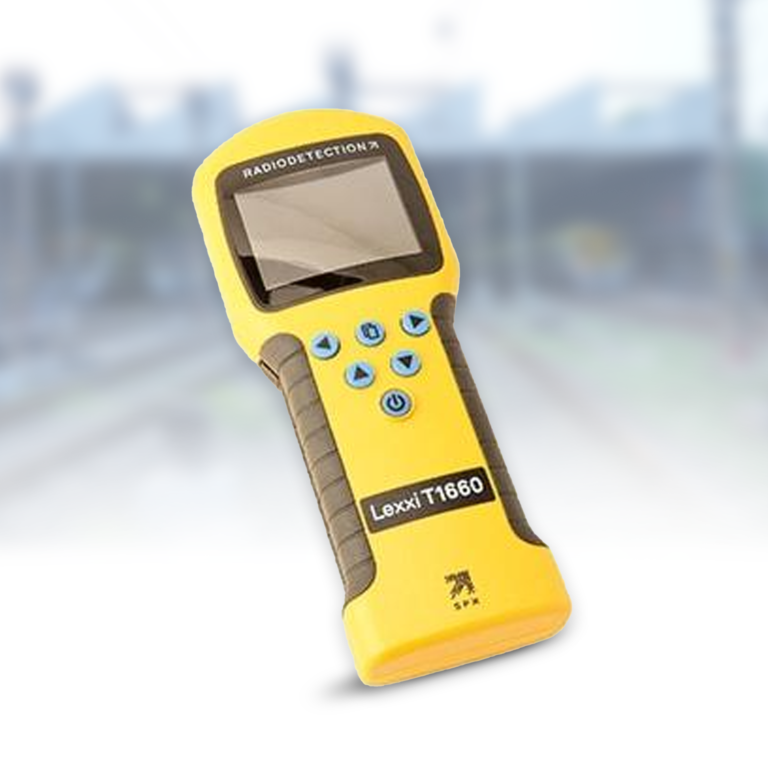

The Lexxi T1660 is a high-precision Time Domain Reflectometer combining exceptional accuracy with user-friendly operation. Built with industry-leading 1% distance accuracy and resolution capabilities, the system features a 3.5″ color backlit display (256 x 328 pixels) and provides comprehensive cable analysis up to 6km range. The ergonomic design draws from the proven layouts of the Riser Bond Model 1550 and Bicotest Lexxi T810, while incorporating an advanced TDR engine for superior performance.
Designed for versatility, the system comes standard with 100Ω crocodile clip Twisted Pair connection cables and supports various plug-in modules for different applications. The system can analyze all metallic cables with at least two metallic elements, including armor or screening. Optional accessories include a Mains Blocking Filter module for safe analysis of live 3-phase cables, various impedance-matched connection modules (50Ω, 75Ω, 100Ω), and specialized adaptors for different connection types.
Applications
– CATV cable analysis
– Twisted pair telecom testing
– Ethernet cable verification
– LV power cable assessment
– Three-phase mains analysis
– Network infrastructure testing
– Cable fault location
– Distance measurement and mapping
