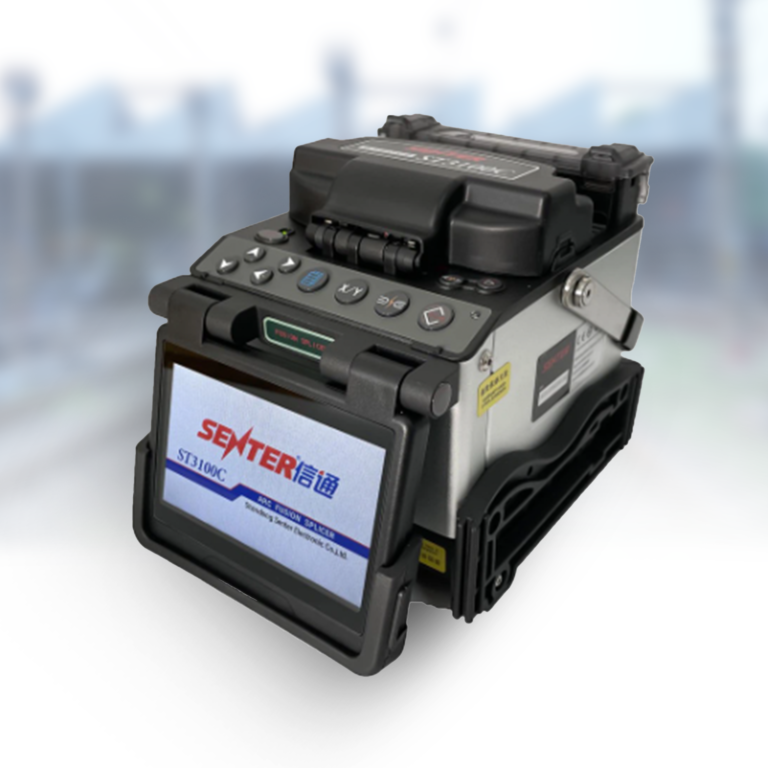

The ST3100C Fusion Splicer is a professional-grade fiber optic splicing system featuring rapid 8-second splicing and 18-second heating cycles. The system incorporates 4-motor Real Core alignment technology to achieve exceptional accuracy with average losses under 0.01dB. Operation monitoring is facilitated through a large 4.3-inch TFT color LCD display, providing clear visibility of the splicing process.
Engineered for extended field operations, the system is powered by a high-capacity 5200mAh battery supporting up to 300 splice and heat cycles per charge. The splicer features tool-free exchangeable electrodes rated for 5,000 splices, significantly reducing maintenance downtime. Its innovative 3-in-1 fiber holder design enhances versatility while maintaining precise alignment capabilities for consistent splicing performance.
Applications
– Professional fiber optic installations
– High-volume splicing operations
– Telecommunications infrastructure
– Data center connectivity
– Network maintenance and repair
– FTTH network deployment
– Industrial fiber optic systems
– Emergency restoration work
