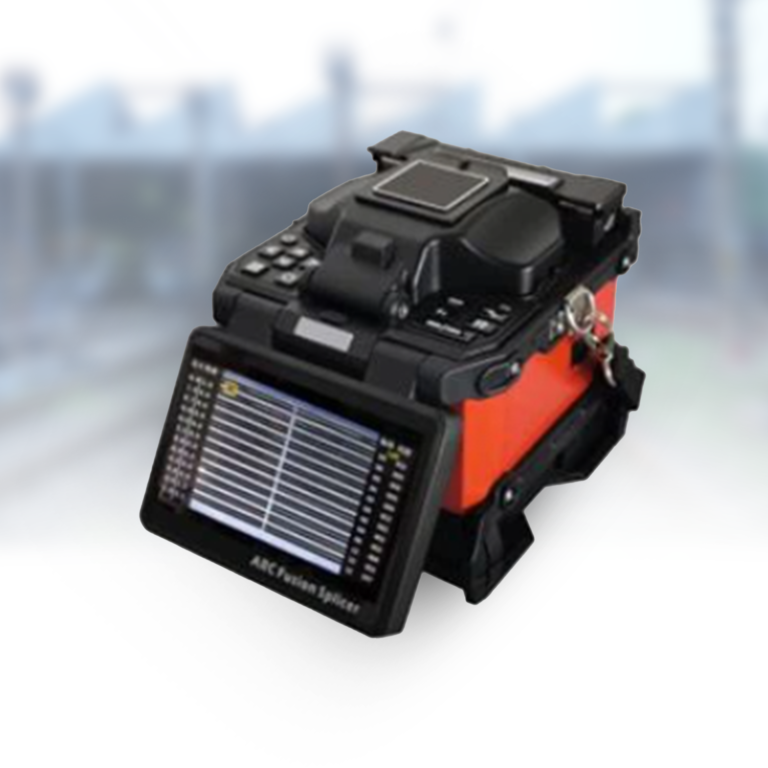

The ST3100H is a specialized ribbon fiber fusion splicer designed to handle 2-12 fiber ribbon splicing with industry-standard fusion loss performance. The system utilizes Clad-to-Clad alignment technology supporting multiple fiber types (SM/MM/DS/NZDS) with exceptional loss characteristics: SM:0.05dB, MM:0.02dB, DS/NZDS:0.08dB. Operating through a 5-inch 800×480 LCD monitor with dual high-sensitivity cameras at 25X magnification, the system delivers efficient splicing times of 20 seconds and variable heating times of 26/40 seconds for different ribbon configurations.
Engineered for professional field deployment, the splicer features a ruggedized, waterproof, dust-resistant, and shock-resistant construction. Powered by a removable 5200mAh Li-battery supporting 150 splice and heat cycles, the system includes comprehensive data management capabilities storing 4000 splice records and 100 fusion images. The user-friendly interface includes USB 2.0 connectivity for software updates and data export, while the electrodes are easily replaceable after their 3000-discharge lifetime.
Applications
– Mass fusion ribbon splicing
– High-density fiber installations
– Data center infrastructure
– Telecommunications networks
– Multi-fiber cable assembly
– Backbone network construction
– Industrial fiber optic systems
– High-speed network deployment
