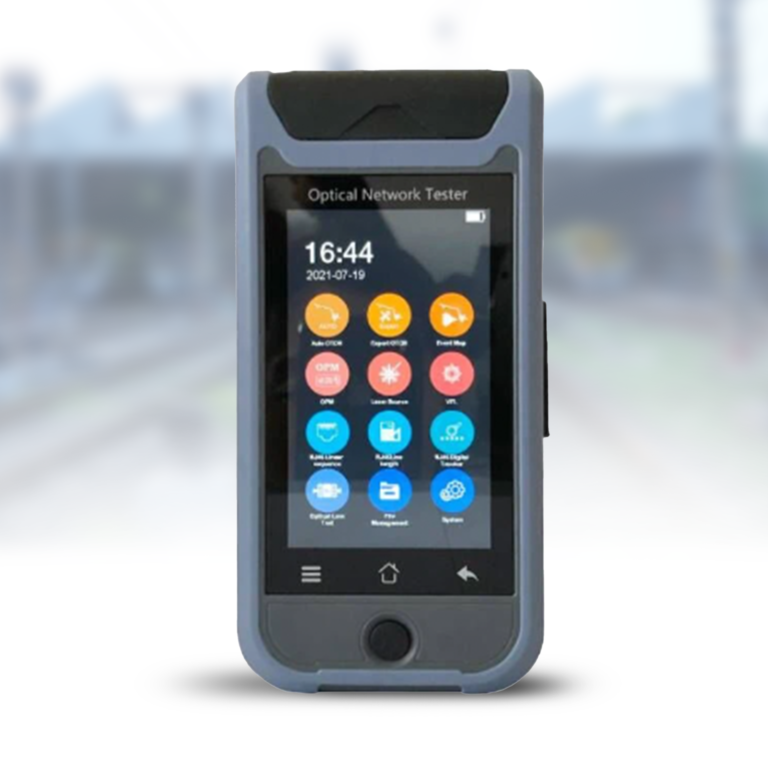

The ST3200F series is a compact OTDR featuring a 4.3-inch capacitive touchscreen that integrates 12 essential testing functions. The system combines auto and expert OTDR modes with comprehensive testing capabilities including event mapping, optical power measurement, and RJ45 cable tracking. With dynamic ranges up to 32/30dB and sampling points from 16k to 128k, the device delivers professional-grade optical fiber analysis in a portable format.
Built for field efficiency, the system operates on a 3.7V, 4000mAh lithium battery supporting over 12 hours of continuous testing. The device features 8GB storage capacity for over 20,000 curves, and includes advanced features like multi-task operation, allowing simultaneous VFL and LS background operation. The unit supports universal connector types (FC/UPC, SC, ST) and incorporates RJ45 cable testing capabilities up to 300m, with both wavelength recognition and optical loss testing functionalities.
Applications
– FTTX network testing and maintenance
– Secondary backbone network assessment
– Emergency repair diagnostics
– Fiber optic cable production testing
– Network infrastructure verification
– RJ45 cable sequence testing
– End-face inspection
– Optical loss measurement
