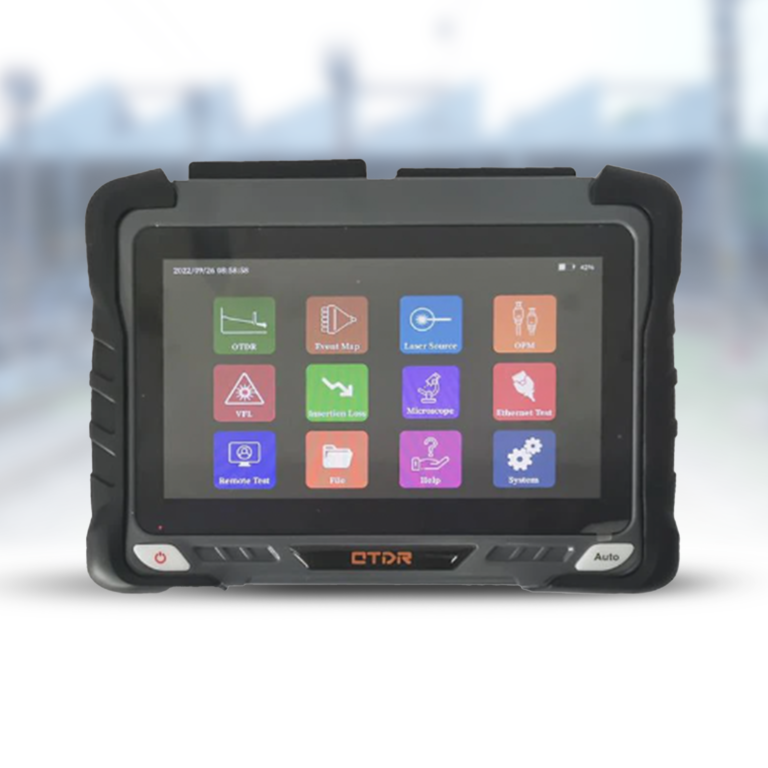

The ST3200H series OTDR is an advanced optical testing platform featuring a 7-inch capacitive touchscreen interface with integration of nine distinct testing modules. The system delivers high-precision measurements for both short fiber testing and automatic assessments, incorporating comprehensive Ethernet testing capabilities (Ping/PPOE) with APP control support. The device utilizes sophisticated intelligent hardware and software design to achieve superior accuracy in fiber optic measurements.
Built for professional field deployment, the system offers dynamic ranges up to 45/43dB depending on configuration, with event blind zones as low as 0.5m. The device features extensive storage capacity with 2GB internal memory supporting 200,000 curves and expandable external storage up to 64GB. Multiple interface options include USB-A, Type-C, and RJ45 LAN ports, while the integrated optical power meter supports a broad wavelength range of 800nm to 1700nm. The system operates on a robust 3.7V, 10400mAh lithium battery and includes versatile connector options (FC/UPC, SC, ST).
Applications
– Urban trunk network testing
– Metropolitan area network assessment
– Optical fiber length measurement
– Connection quality verification
– Network maintenance diagnostics
– Engineering construction testing
– Fiber optic loss measurement
– Network infrastructure documentation
