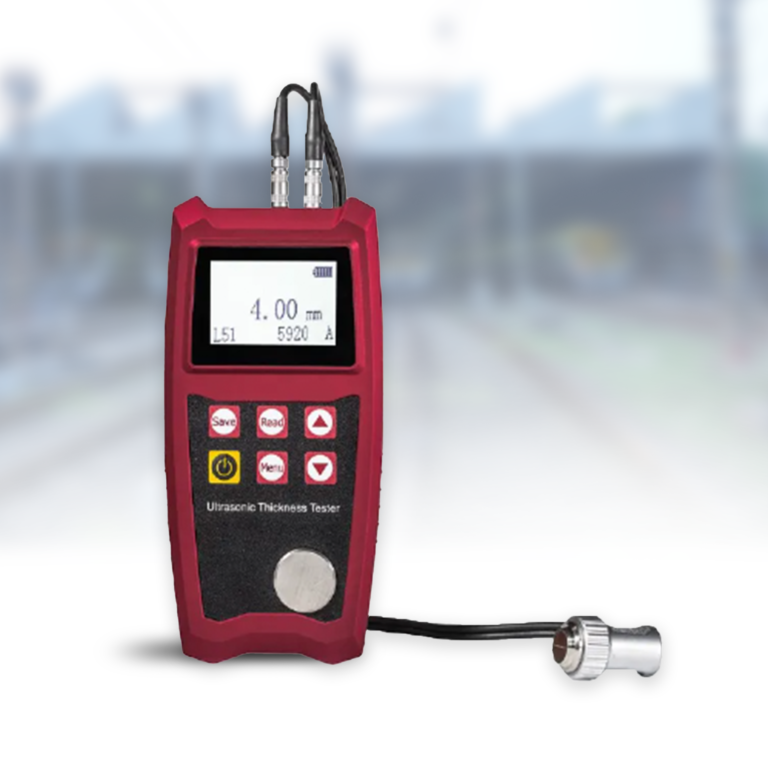

The UEE930 is a high-precision ultrasonic thickness gauge offering measurements from 0.75-350mm with exceptional 0.01mm resolution. The system features dual probe capability with both standard and angle probes (90°, 5P Ø10), complemented by an integrated 4mm calibration block for accurate calibration. Operating at velocities between 1000-9999 m/s, the device provides comprehensive measurement capabilities with sound velocity measurement functionality for unknown materials.
Built for field reliability, the gauge features a durable plastic housing measuring 163×78×33mm and weighs just 200g. The system operates effectively across an impressive temperature range of -10°C to 60°C with 20-90% humidity tolerance. Powered by two AA batteries, it offers substantial data storage capacity of 2000 groups and includes PC connectivity software for data transmission and analysis. Each unit comes complete with coupling agent, calibration certificate, and comprehensive documentation, backed by a 3-year warranty.
Applications
– Metal thickness measurement (steel, iron, aluminum)
– Plastic material assessment
– Ceramic component inspection
– Composite material evaluation
– Glass thickness verification
– Industrial quality control
– Manufacturing process monitoring
– Material velocity calibration
